12

Years in the Industry

09

CNC Machining Centers

19

CNC Turning Centers

03

Grinding Machines

Machinery

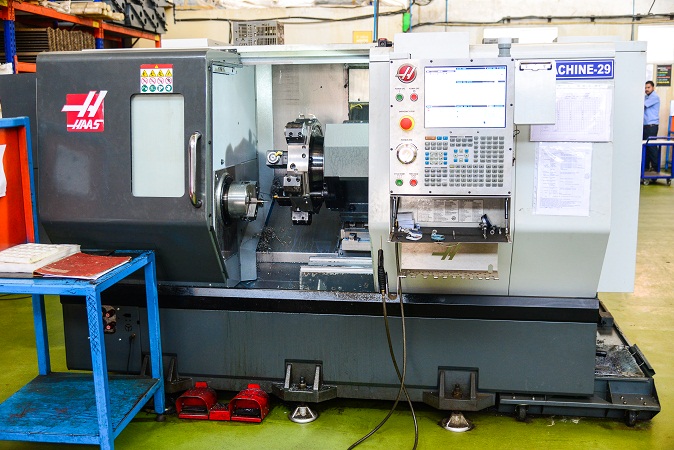

CNC Turn Mill : Haas ST 20 Y

Machine Capacity:

Standard Chuck Dia: 210mm
Maximum Turning Dia: 300mm
Maximum Turning Length: 600mm
Swing Over Bed: 400mm
Maximum Bar capacity: 45mm
Accuracy: 0.006mm

CNC Turn Mill : Haas ST 20 Y

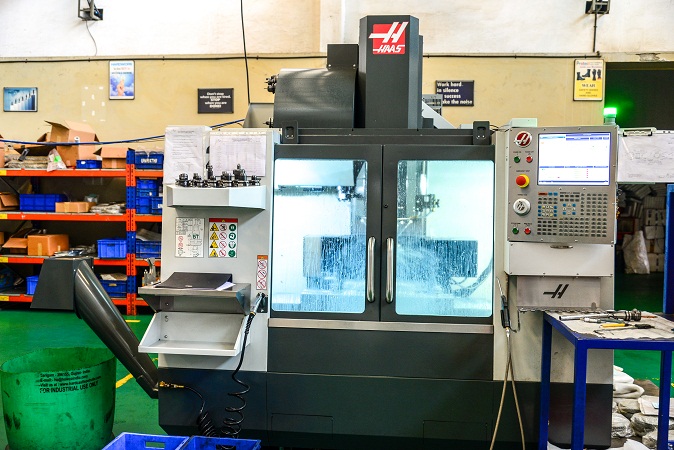

VMC Milling Machine : Haas VF-2 with Trunnion Table

Specification:

Table size: 660 x 914 mm
Max Load capacity: 1361 kg


Machine Capacity:

Travel X/Y/Z axes: 800/406/508
Distance From Spindle face to table top: 508mm


System controller:

HAAS control

VMC Milling Machine : Haas VF-2 with Trunnion Table

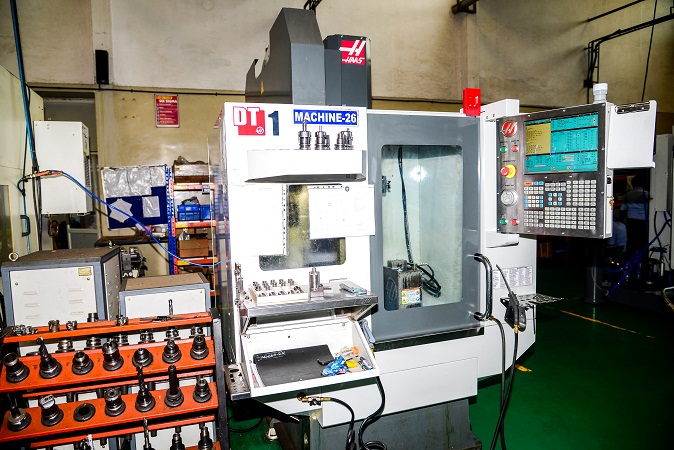

VMC Milling Machine : Haas DT1

Specification:

Table size: 400 x 600 mm
Max Load capacity: 400 kg


Machine Capacity:

Travel X/Y/Z axes: 400/600/350
Distance From Spindle face to table top: 400mm


System controller:

HAAS control

VMC Milling Machine : Haas DT1
CNC Turning Center : Haas ST20

Machine Capacity:

Standard Chuck Dia: 210mm
Maximum Turning Dia: 300mm
Maximum Turning Length: 600mm
Swing Over Bed: 400mm
Maximum Bar capacity: 45mm
Accuracy: 0.006mm

CNC Turning Center : Haas ST20
VMC Milling Machine : BFW Chakra - BMV - 60

Specification:

Table Size : 1250 X 600 mm
Max. Load on table: 1200 kgf


Machine Capacity:

Travel X/Y/Z axes: 1050/610/610 mm
Dist. From spindle face to table top: 850mm
Coolant through: Chip Conveyor


System controller:

FANUC With UCAM make 5th Axes with Pneumatic Tail Stock

VMC Milling Machine : BFW Chakra-BMV-60 5 Axes, 2 nos.
VMC Milling Machines : BFW Chakra - BMV - 60

Specification:

Table Size: 1250 X 600 mm
Max. Load on table: 1200 kgf


Machine Capacity:

Travel X/Y/Z axes: 1050/610/610 mm
Dist. From spindle face to table top: 850mm,
Coolant through: Chip Conveyor


System controller:

FANUC With UCAM make 4th Axes with Pneumatic Tail Stock

VMC Milling Machine : BFW Chakra-BMV-60 4 Axes
VMC Milling Machine : BFW Agni+ - BMV - 45+

Specification:

Table Size: 1000 X 500 mm
Max. Load on table: 600 kgf


Machine Capacity:

Travel X/Y/Z axes: 800/450/500 mm
Dist. From spindle face to table top: 850mm


System controller:

FANUC With UCAM make 4th Axes with Pneumatic Tail Stock

VMC Milling Machine : BFW Agni+ - BMV - 45+, 3 Nos.

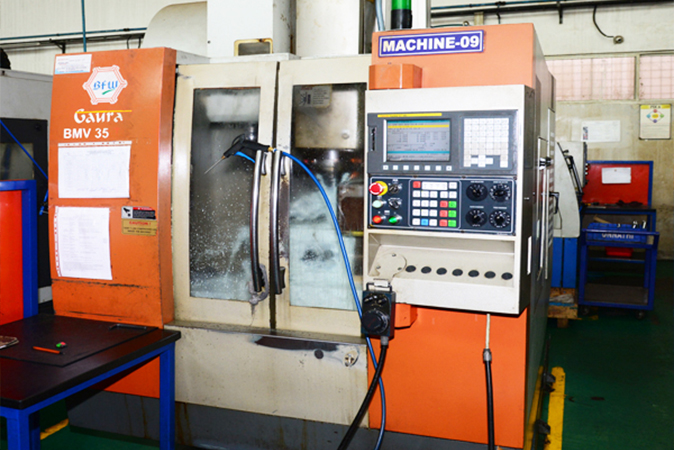

VMC Milling Machines : BFW Gaurav - BMV - 35

Specification:

Table Size: 600 X 400 mm
Max. Load on table: 350 kgf


Machine Capacity:

Travel X/Y/Z axes: 450/350/350 mm
Dist. From spindle face to table top: 650mm,


System controller:

FANUC With UCAM make 4th Axes with Pneumatic Tail Stock.

VMC Milling Machines : BFW Gaurav - BMV - 35

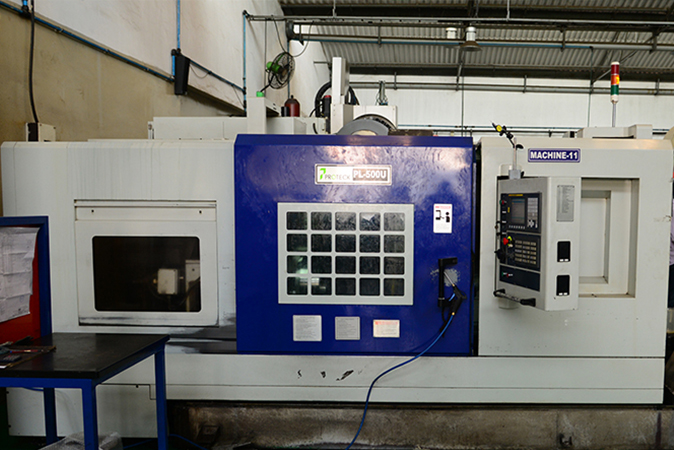

CNC Turning Center : Proteck PL -500U

Specification:

Note:
One M/c is fitted with Standard Chuck-dia: 400mm
Maximum Bar Capacity-dia: 70mm


Machine Capacity:

Swing Over Bed-dia: 600mm
Standard Chuck-dia: 400mm
Maximum Bar Capacity-dia: 70mm
Maximum Turning Diameter: 500mm
Maximum Turning length: 1200mm

CNC Turning Center : Proteck PL - 500U

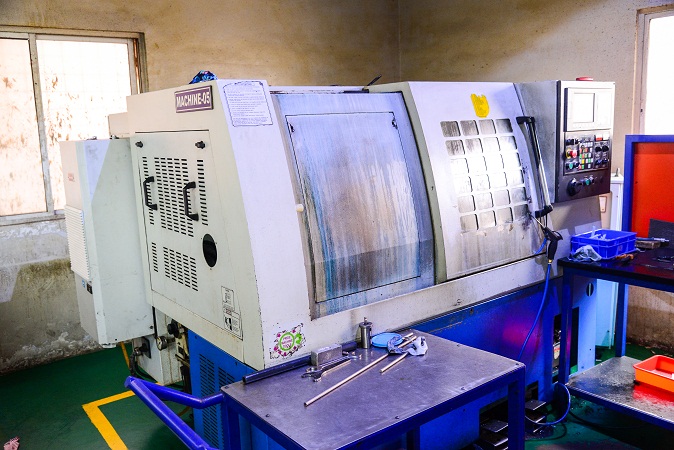

CNC Turning Center : Pride - JAGUAR

Machine Capacity:

Standard Chuck Dia: 200mm
Maximum Turning Dia: 350mm
Maximum Turning Length: 550mm
Swing Over Bed: 400mm
Maximum Bar capacity: 45mm
Accuracy: 0.01mm

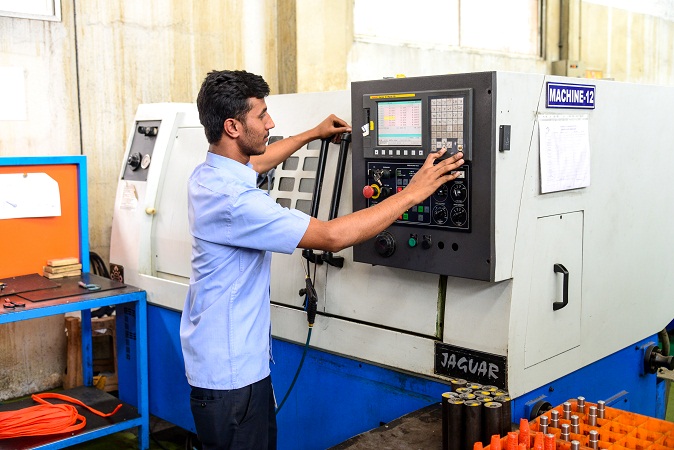

CNC Turning Center : Pride - JAGUAR, 9 Nos.
CNC Turning Center : Pride – JAGUAR

Machine Capacity:

Standard Chuck Dia: 200mm
Maximum Turning Dia: 350mm
Maximum Turning Length: 550mm
Swing Over Bed: 400mm
Maximum Bar capacity: 45mm
Accuracy: 0.01mm

CNC Turning Center : Pride – JAGUAR

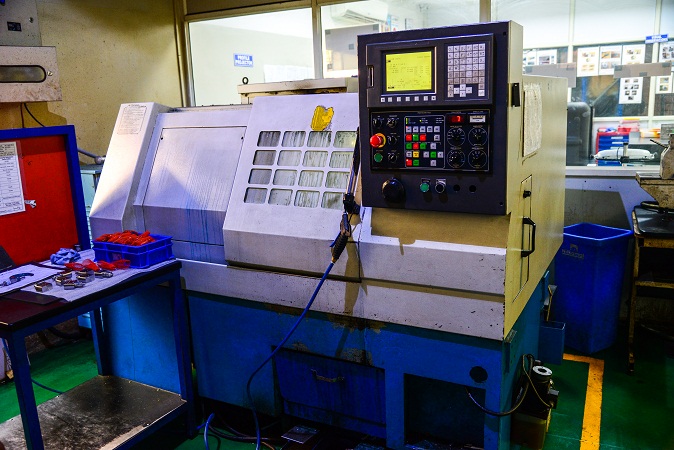

CNC Turning Center : Pride – TARPIDO

Machine Capacity:

Standard Chuck Dia: 135mm
Maximum Turning Dia: 140mm
Maximum Turning Length: 220mm
Swing Over Bed: 280mm
Maximum Bar capacity: 25mm
Accuracy: 0.01mm

CNC Turning Center : Pride – TARPIDO

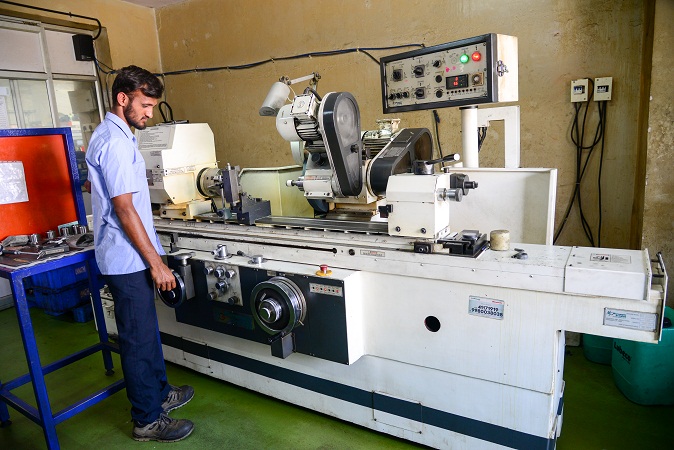

Grinding Machine : Micromatic GCU -350

Machine Capacity:

Standard Chuck Dia: 200mm
Maximum Grinding Dia: 280mm
Maximum Grinding Length: 1000mm
Swing Over Bed: 280mm
Accuracy: 0.002mm

Grinding Machine : Micromatic GCU -350
Grinding Machine : Micromatic Eco-200U

Specification:

Standard Chuck Dia: 165mm
Maximum Grinding Dia: 180mm
Maximum Grinding Length: 400mm
Swing Over Bed: 180mm
Accuracy: 0.002mm

Grinding Machine : Micromatic Eco-200U
Surface Grinding Machine : Cosmos – 7040 NC

Specification:

Table size: 700 x 400 mm
Max Load capacity: 400 kg


Machine Capacity:

Travel X/Y/Z axes: 700/400/200
Distance From Spindle face to table top: 200mm


System controller:

NC control - Accuracy: 0.001mm

Surface Grinding Machine : Cosmos – 7040 NC
Band saw Cutting machine – Indo Tech

Machine Capacity:

Max cutting capacity: 210mm


Band saw Cutting machine – Indo Tech

Metrology

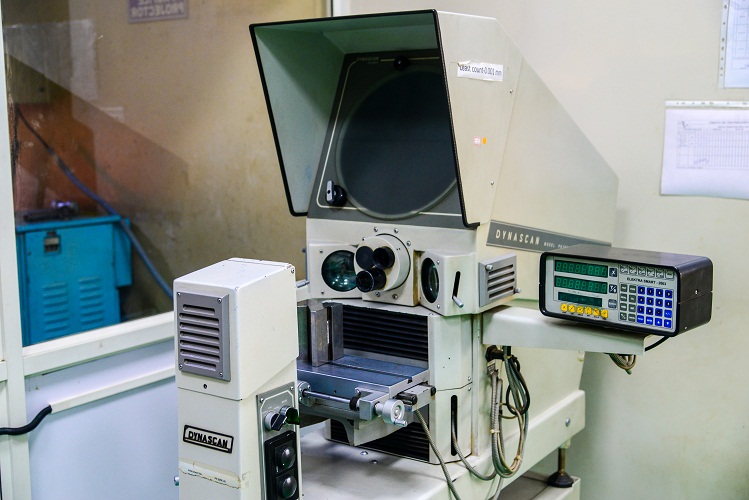

Profile Projector

Specification:

Screen Dia - 300mm


Profile Projector

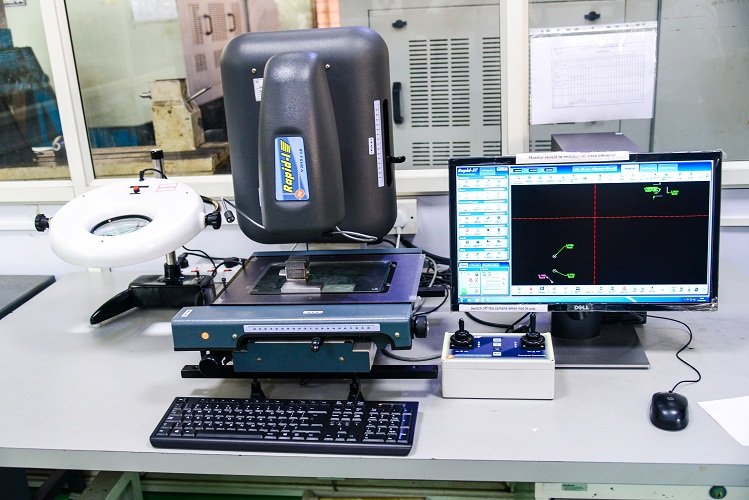

Video Measuring System

Specification:

Video Ms - 200mm x 150mm x 150mm

Accuracy - 1 Micron


Video Measuring System

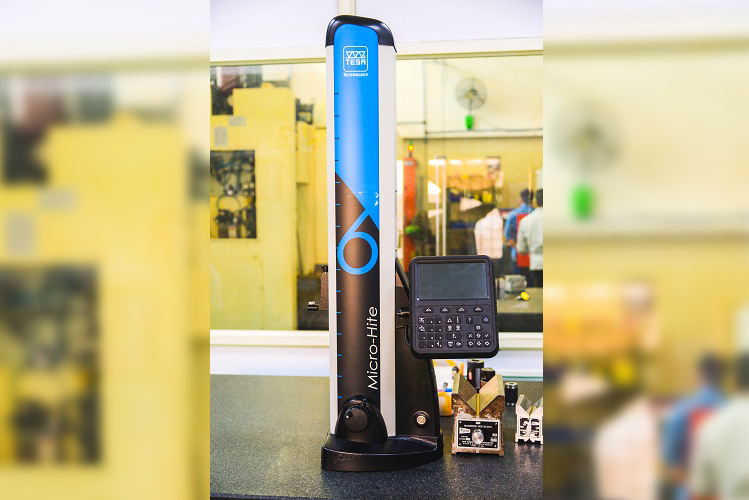

Micro Hite

Specification:

650mm


Micro Hite, 3 No
